Introduction

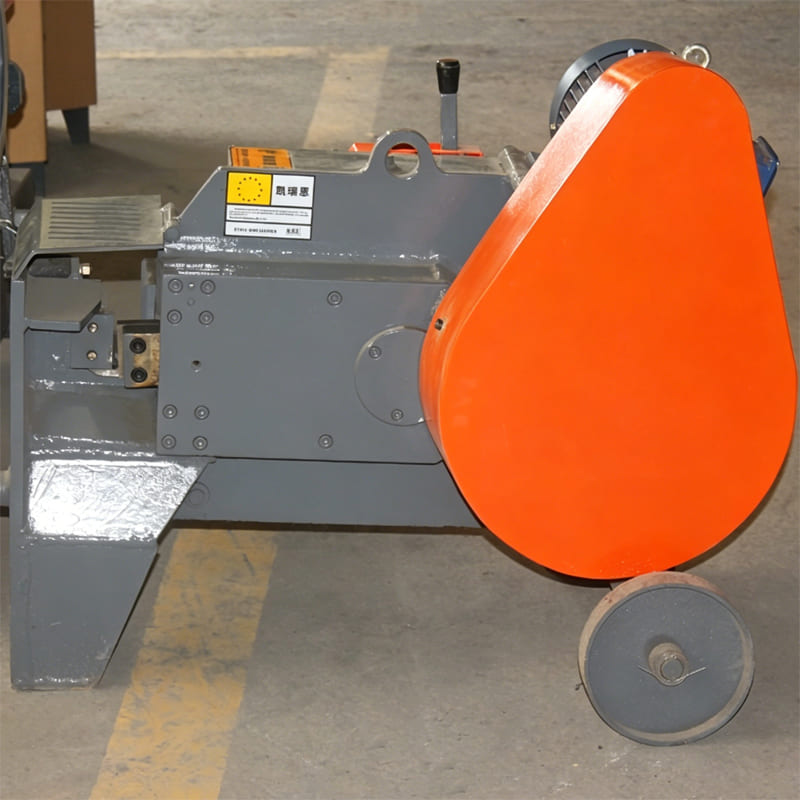

C30 Steel Bar Cutting Machine is a precision tool designed for small to medium rebar processing tasks. Ideal for workshops and construction sites, it cuts reinforcement steel bars (4–25 mm diameter) with ease. Built with high‑density fine cast steel components and a steel plate welded shell, this machine delivers long‑lasting reliability in demanding environments.
Specifications
| Model | C30 |
|---|---|
| Weight | 200 kg |
| Rated Power | 3 kW |
| Cutting Capacity | 4 – 30 mm (rebar) |
| Blade Configuration | Square knife |
| Dimensions | 810*610*790mm |
Advantages
-

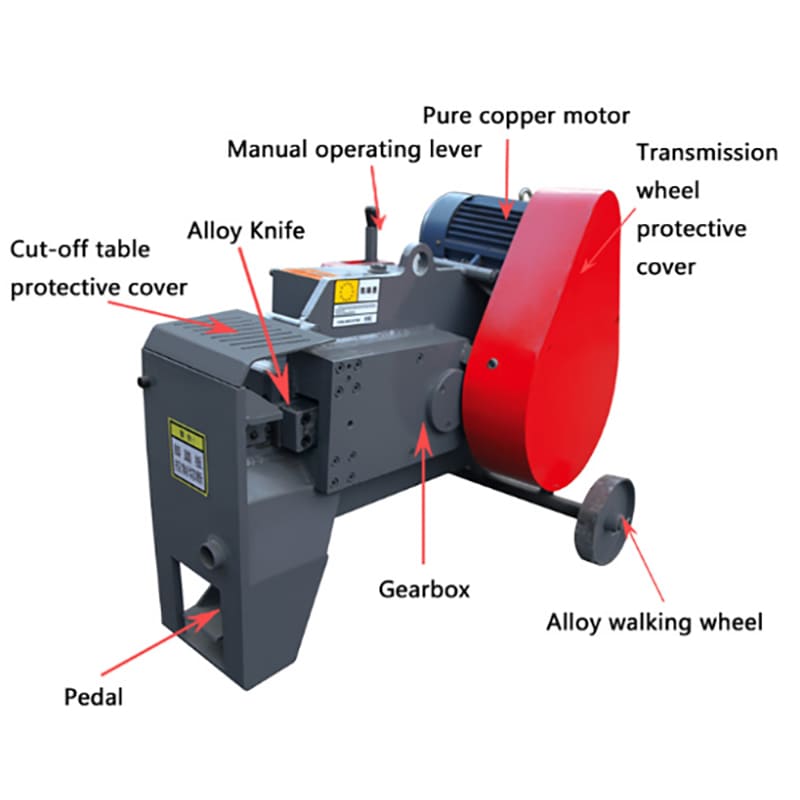

Robust Construction – Housing is made of high‑density fine cast steel, sturdy and durable. The large gear also uses high‑density cast steel, while the shaft and gear drive feature uniform helical gearing for smooth operation.
-
Premium Bearings – Driven by RENBEN bearings, the machine runs stably with extremely low noise, reducing maintenance needs over time.
-
High‑Quality Components – Equipped with high‑quality alloy blades for clean cuts, military‑grade V‑belts for reliable power transmission, and the Chinese famous brand Zhengtai electrical control system for safe and responsive operation.
-
Dual Clutch Control – Foot or hand clutch provides flexible operation, making it easier for different working postures and increasing productivity.
-
Durable Shell & Gear – Steel plate welded shell adds impact resistance. The main gear is #45 steel, known for its excellent strength and wear resistance.
C30 Steel Bar Cutting Machine combines compact size (only 170 kg, 713 mm height) with robust cutting power. Whether you are fabricating stirrups or cutting straight bars, this machine offers efficiency, safety, and long service life at an economical price point.
