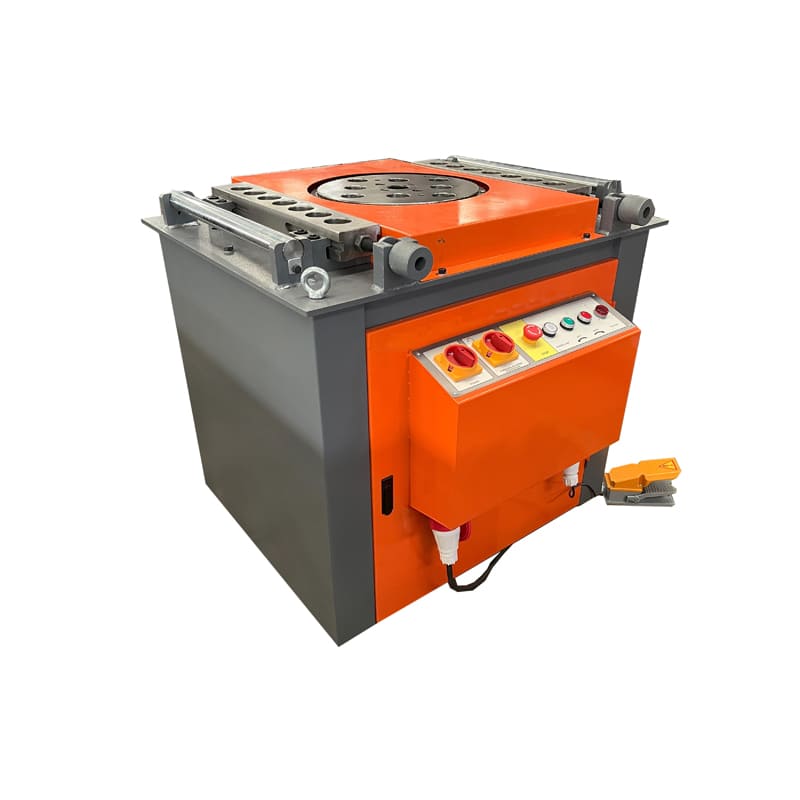

GW42E Steel Bar Bending Machine – Precision, Durability, and Efficiency
GW42E Steel Bar Bending Machine is an essential tool for efficiently bending steel bars used in construction projects. Engineered for precision and reliability, it supports automatic and manual operation, ensuring maximum flexibility for various job site requirements. Featuring an advanced non-contact switch sensor and integrated microcomputer control, the GW42E significantly minimizes bending angle errors compared to traditional machines, making it a top choice for professionals.
Technical Specifications
| Model | GW42E Rebar Bending Machine |
|---|---|
| Bending Capacity | II Rebar (≤450N): ≤ø42mm |
| III Rebar (≤650N): ≤ø36mm | |
| Working Disc Size | ø350mm |
| Spindle Speed | 7-10 rpm |
| Motor Power | 3 kW (3 Phase) |
| Weight | 330 kg |
| Dimensions | 1050 × 910 × 1010 mm |
| Voltage Options | 380V / 220V / 415V / 440V |
Key Features of GW42E Rebar Bending Machine
Robust Gearbox Design
- Fully enclosed gearbox, separate from the work plate, prevents oil leakage and deformation under heavy loads.
- Enhances machine longevity and operational safety.
Premium Alloy Steel Construction
- Heat-treated gears, shafts, and working discs ensure superior strength and long-lasting performance.
- Reinforced with a 3mm thick outer shell for added durability.
Precision Bending with Smart Control
After typing in angle data, press “click to enter” key or “click to back” key to make sure that working disk rotates to proper position. Lay in processing part and step on foot switch for one time, then the working disk rotates according to first working procedure of current hoop model. When reaching preset angle, return to original point, and the like. After the procedure of current hoop model is finished, workpiece is produced.
Versatile & Efficient Performance
- Supports manual and automatic bending for increased adaptability.
- Quick and easy angle adjustments streamline the bending process, saving time and labor.
How the GW42E Machine Works
GW42E Rebar Bending Machine operates through automatic and manual change-over switch, conduct exchange. When the machine is in manual gear, the indicator of power supply is ON. At the moment, click “click to enter” or “click to back”, and the machine is in manual condition. Otherwise, when the indicator of power supply is not ON, it is in automatic condition. Please operate the machine according to the following instructions.
Why Choose the GW42E Rebar Bending Machine?
With its high-precision bending, heavy-duty construction, and user-friendly design, GW42E Rebar Bending Machine is ideal for both on-site projects and factory production. Whether you need high-volume bending or customized rebar shapes, this machine delivers superior performance with minimal maintenance.
