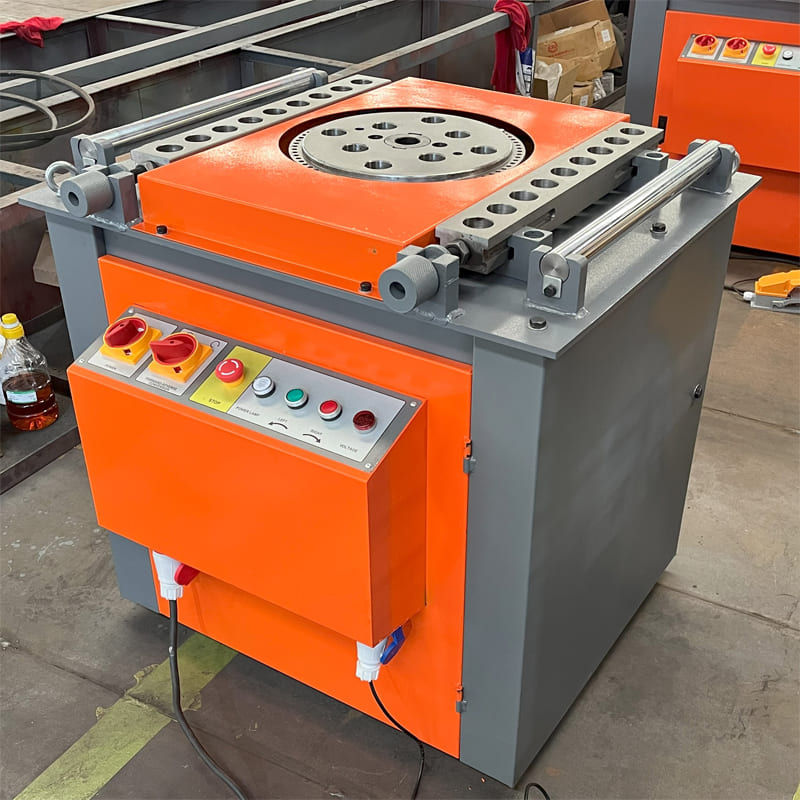

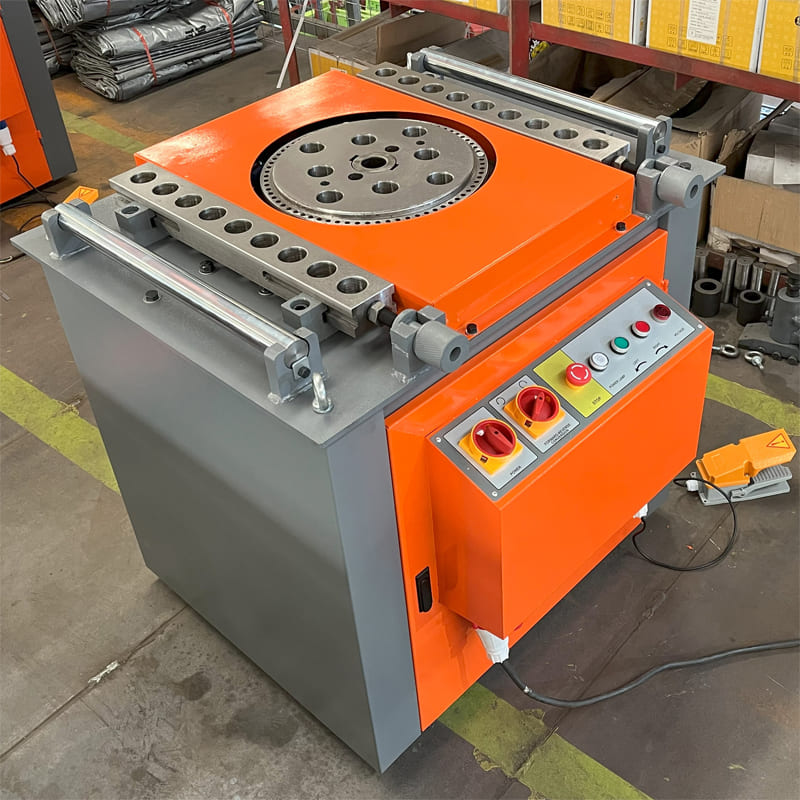

GW42D Steel Bar Bending Machine – Precision, Durability, and Efficiency
GW42D Steel Bar Bending Machine is an essential tool for efficiently bending steel bars used in construction projects. Engineered for precision and reliability, it supports automatic and manual operation, ensuring maximum flexibility for various job site requirements. Featuring an advanced non-contact switch sensor and integrated microcomputer control, the GW42D significantly minimizes bending angle errors compared to traditional machines, making it a top choice for professionals.
Technical Specifications
| Model | GW42D Rebar Bending Machine |
|---|---|
| Bending Capacity | II Rebar (≤450N): ≤ø42mm |
| III Rebar (≤650N): ≤ø36mm | |
| Working Disc Size | ø350mm |
| Spindle Speed | 7-10 rpm |
| Motor Power | 3 kW (3 Phase) |
| Weight | 330 kg |
| Dimensions | 1050 × 910 × 1010 mm |
| Voltage Options | 380V / 220V / 415V / 440V |
Key Features of GW42D Rebar Bending Machine
Robust Gearbox Design
- Fully enclosed gearbox, separate from the work plate, prevents oil leakage and deformation under heavy loads.
- Enhances machine longevity and operational safety.
Premium Alloy Steel Construction
- Heat-treated gears, shafts, and working discs ensure superior strength and long-lasting performance.
- Reinforced with a 3mm thick outer shell for added durability.
Precision Bending with Smart Control
- Equipped with a dust-proof brake motor and limit switches for high-accuracy bending angles.
- Movable saddles and insert-pinned discs allow for precise adjustments, ensuring consistent results.
Versatile & Efficient Performance
- Supports manual and automatic bending for increased adaptability.
- Quick and easy angle adjustments streamline the bending process, saving time and labor.
How the GW42D Rebar Bending Machine Works
GW42D Rebar Bending Machine operates through a horizontal rotating work disc. The process includes:
- Placing the steel bar on the disc and securing it with a supporting pin.
- Utilizing both a center pin and a bending pin mounted on the rotating disc.
- As the disc rotates, it precisely bends the steel bar into the required shape.
- Multiple hole positions in the working disc allow easy adjustment for different bar diameters by swapping center pins.
Why Choose the GW42D Rebar Bending Machine?
With its high-precision bending, heavy-duty construction, and user-friendly design, GW42D Rebar Bending Machine is ideal for both on-site projects and factory production. Whether you need high-volume bending or customized rebar shapes, this machine delivers superior performance with minimal maintenance.
